Tutorial

Download

Procedure description

Here you will find our short and concise process description including the technical data for your project.

Download

Tender texts

Here you will find valuable tips for the tender

Download

Installation instructions

Here you will find valuable installation instructions for your project.

Download

Operating instructions

Safety briefing

Mixing instructions

Download

GDP VulkanPLUG

Product data sheet

Instructions for use

Chemical Analysis

Download

System check

Areas of application and suitability

Quality control and evidence

Environmental compatibility

Download

Excavator attachment coupling

Here you will find a brief description of the options for the "Excavator Attachment" interface

Download

GeoLOG Web App

If you are interested in the GeoLOG Web App for modern, complete, simple and cost-saving digital documentation, then send us a short message

Message GeoLOG

GeoLOG Mobile App

The GeoLOG Mobile App is available for you to download free of charge from the Apple App Store.

Search the App Store for "Geolog simple borehole documentation"

Literature for further reading

bbr 01/2021

bbr special edition 01/2021

Download

New method for layer-by-layer compaction of cohesive building materials in the borehole, bbr issue 01/2021

DUE 02/2022

TAE Conference Proceedings 02/2022

Download

"Development of a new process for a void-free

and dynamically permanent stable filling of boreholes"

Edited by Christian Moormann and Carola Vogt-Breyer.

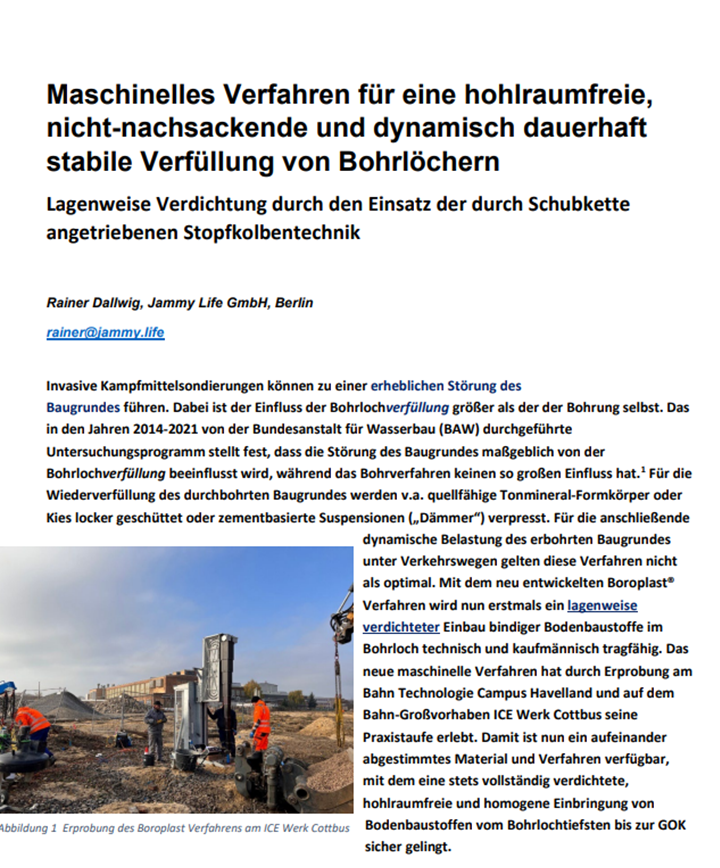

Explosive Ordnance Conference

Conference proceedings, Dresden, 11/2022

Download

"Mechanical process for cavity-free, non-sagging and dynamically permanently stable filling of boreholes"

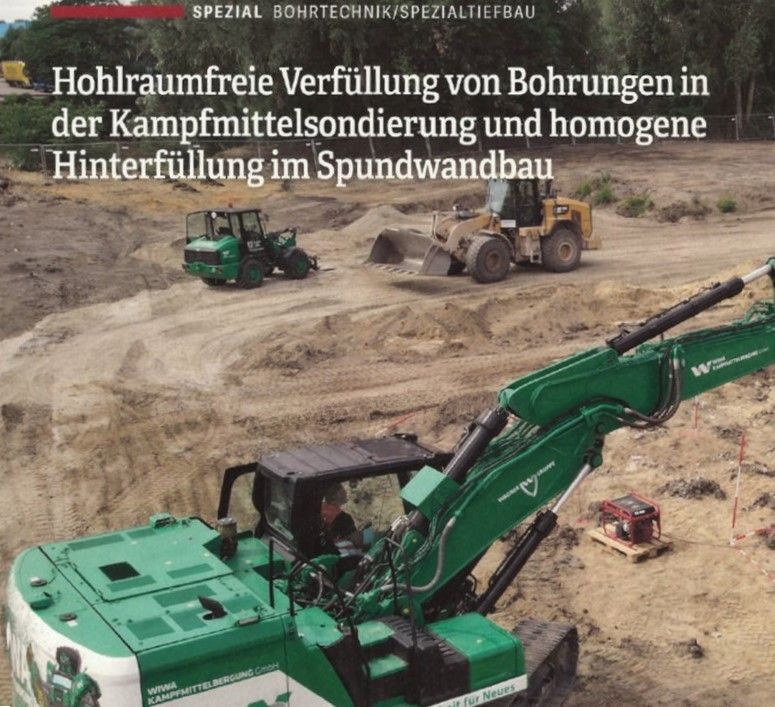

bbr 05/2024

bbr issue May 2024

BOROPLAST process

Layer-by-layer, void-free filling of boreholes

Download bbr 05/2024

The machine

Borehole compactor brochure, process description and data sheet

Download brochure

BFR-KMR 2024

Technical building guidelines for explosive ordnance clearance, chapter filling boreholes

Download BFR-KMR

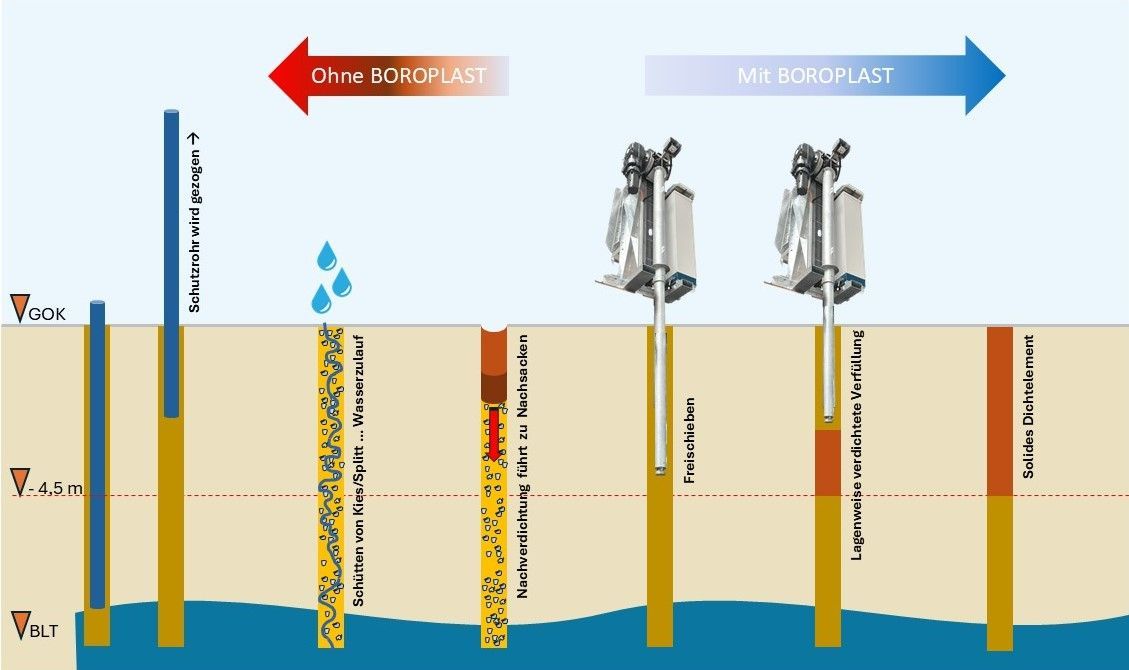

Step by step to ideal borehole filling

BOROPLAST explained in simple steps

Connect to the excavator

First step on the construction site: connect the excavator to the quick-change plate. One click and you're ready to go.
Button
Position machine over borehole

The machine is positioned over the borehole with a swivel. Filling area as far as the excavator arm can reach
Button
Machine starts its work.

First, the machine measures the borehole: depth, density of the horizon. And: the tamping piston pushes the borehole free if it has sunk a little.
Button

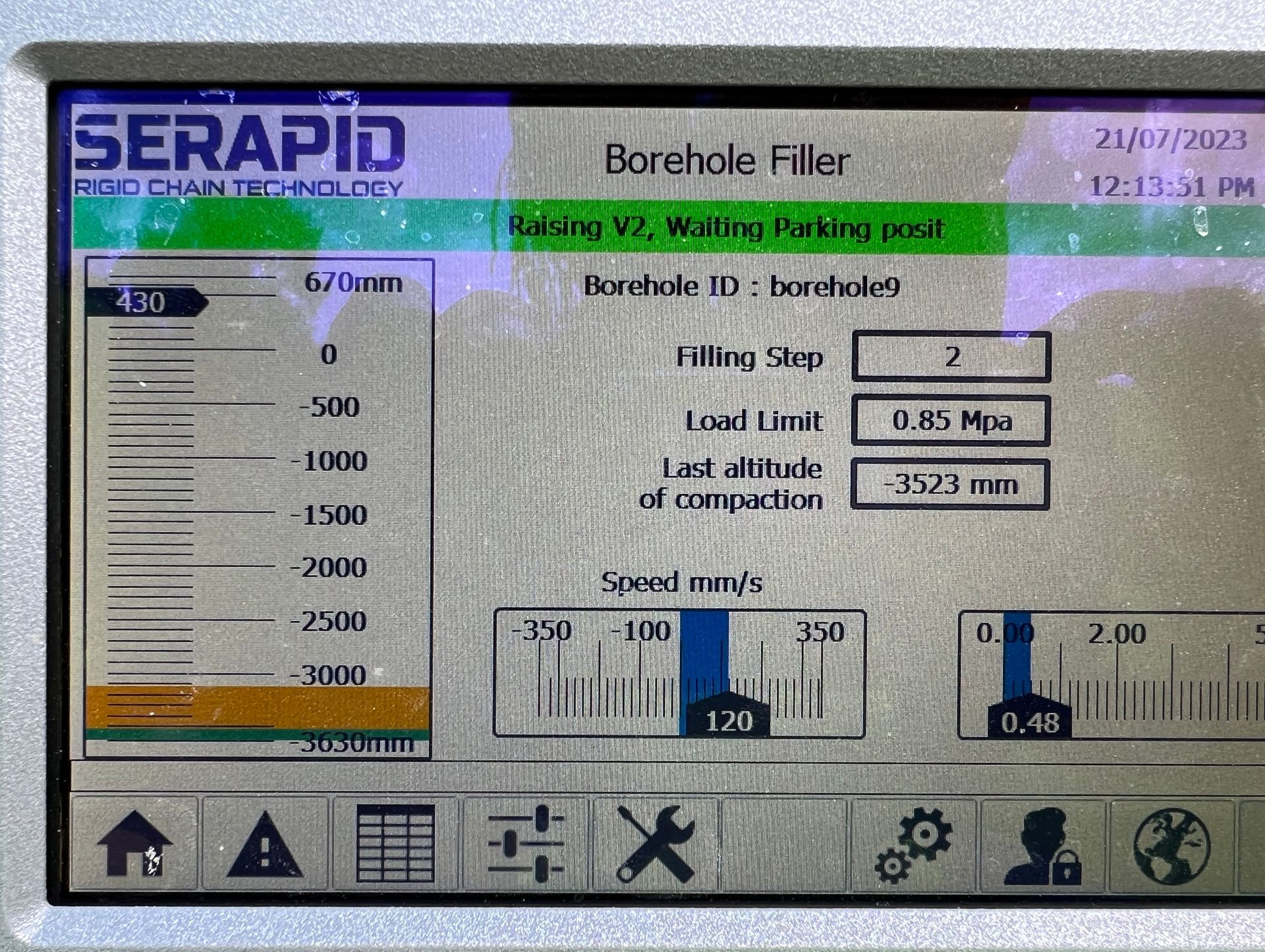

Intuitive control

The control system makes things easy for the operator: filling depth, contact pressure, filling progress: everything is precisely displayed and digitally documented. The control system adapts to even the most difficult subsoil.
Button
Always plumb

The built-in laser helps the machine operator to avoid straying from the right path. Vertically, diagonally or horizontally.
Button
Powerful tamping piston

The robust tamping piston is driven internally by a 15 KN push chain. This creates a controllable contact pressure of 0.8 - 3.7 MPa.
Button
Compaction with 0.8 - 3.7 MPa

Layer by layer - quality. Each individual layer is compressed with enormous contact pressure until the sealing element is finished
Button
Complete!

The borehole is completely filled. It will not sink and will always withstand dynamic loads. The data set is transferred to the database together with the GPS position.
Button
